When manufacturing operations require heavy load movement within constrained layouts, air caster rigging systems safely streamline the process. The AeroGo Air Caster Rigging System uses compressed air to float machinery on a nearly frictionless film, allowing operators to move massive loads with minimal push force. This hovercraft technology delivers omnidirectional movement for loads ranging from 500 pounds to 270 tons without the floor damage caused by roller or rail systems.

Get a Quote

Hovercraft Technology for Heavy Equipment Movement

The AeroGo modular air caster system employs four to six lightweight aluminum load modules to support uneven weight distribution across machinery footprints. Each module inflates with compressed air to create a stable, near-frictionless cushion of air beneath the load. With friction near zero, operators can easily rotate heavy assemblies or navigate narrow aisles that block forklift access.

Advantages of Air Caster Technology

Moving heavy loads with an air caster system provides several operational benefits over traditional material handling methods:

  • Floor protection: Low-friction movement minimizes surface damage often caused by traditional steel rollers and wheels.
  • Ergonomic safety: Near-frictionless operation significantly reduces manual push/pull strain and lift hazards for operators.
  • Omnidirectional movement: Easily rotate and navigate bulky loads through tight spaces.
  • Low profile: Load modules slide under equipment with minimal clearance and keep the load close to the ground to avoid height clearance issues.
  • Efficient operation: The system utilizes the shop’s existing compressed air and has no moving parts, requiring minimal ongoing maintenance.

Flexible Configurations for Millwright Operations

AeroGo Air Caster Rigging Systems include four or six load modules with quick-disconnect fittings, color-coded interconnect hoses and an easy-to-use control console. Operators adjust pressure to each module independently, compensating for offset centers of gravity or irregular equipment shapes. Neoprene and Urethane casters perform best on smooth, nonporous, sealed surfaces. For travel paths involving floor cracks, joints or gaps, operators can lay down temporary overlay materials to create a continuous, airtight route. AeroGo also offers the GAPMASTER™ air caster to cross cracks and gaps.

Typical millwright applications include:

  • Assembly-line rearrangement

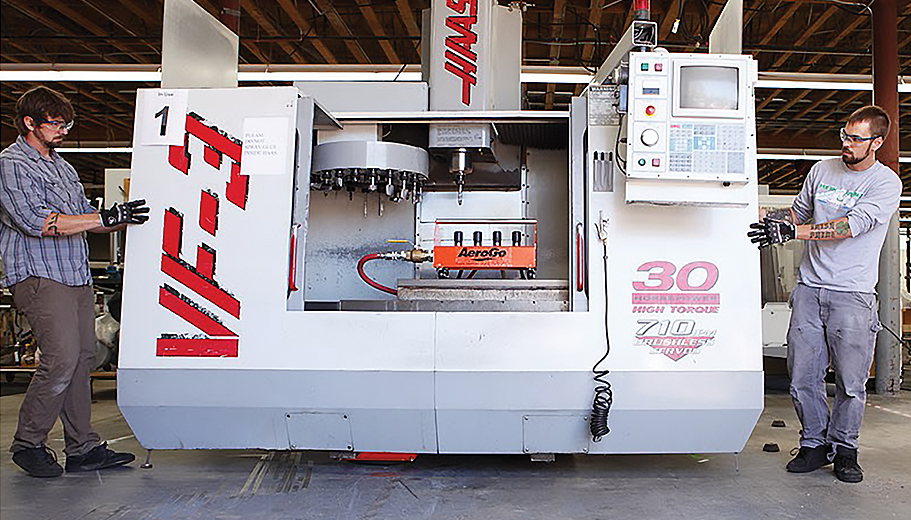

  • CNC machine movement

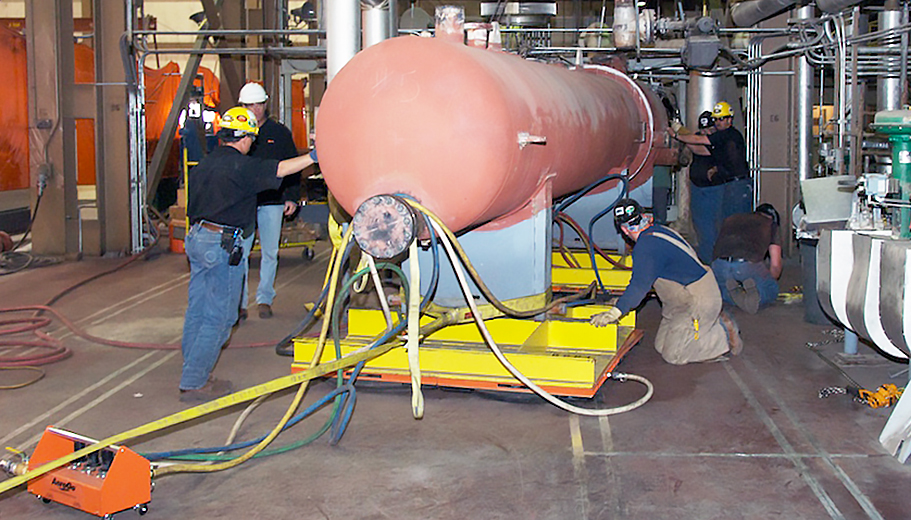

  • Transformer repair
  • Stamping-press installation
  • Rotating large fabrications for welding access

Rigging System Specifications

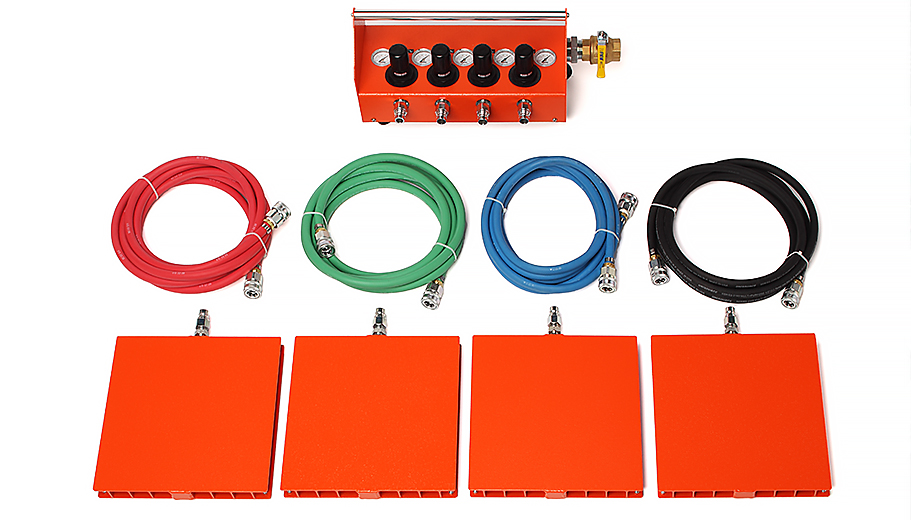

Each load module system includes:

  • Four or six load modules with quick disconnect adapters
  • Four or six 20-foot color-coded interconnection hoses with quick disconnect couplers (both ends)
  • One four-station or six-station regulator control console with quick disconnect adapter outlets and one on/off valve at the inlet

Estimated airflow values are based on a specific load and a suitable operating surface.

Get a Quote

Standard

ModelCapacity (lbs)Air Flow++ (SCFM)Control ConsoleNet Weight (lbs)
4K8NL400032BN3460
6K8NL600048BN66105
4K12N-HLSML800048/108 BN3480
4K8NHDL800048BN3460
4K12NL1000056BN3480
6K12N-HLSML1200072/162BN66135
6K8NHDL1200072BN66105
4K15N-HLSML1400056/200 BN64115
6K12NL1500084BN66135
4K15NL1700056BN64115
4K12NHDL2000064BN3485
6K15N-HLSML2100084/300 BN66170
6K15NL2550084BN66170
4K21NL2800048BN64170
4K21N-HLSML2800064/240 BN64170
6K12NHDL3000096BN66140
4K15NHDL3400080BN64125
6K21NL4200072BN66255
6K21N-HLSML4200096/360 BN66255
6K15NHDL51000120BN66185
4K27NL5600088BN64290
4K21NHDL64000100BN64185
6K27NL84000132BN66430
4K36NL96000116BN64460
6K21NHDL96000150BN66270
4K27NHDL112000192BN84315
6K36NL144000174BN66685
6K27NHDL168000288BN86460
4K48NL192000124BN84740
4K36NHDL200000216BN84480
6K48NL288000186BN861100
6K36NHDL300000324BN86710
4K48NHDL360000240BN84820
6K48NHDL540000360BN861220

Each Load Module System includes:
Four or Six Load Modules with quick disconnect (QD) adapters
Four or Six 20′ long color coded interconnection hoses with quick disconnect (QD) coupler (both ends)
Four or Six station regulator control console with four or six quick disconnect (QD) adapter outlets and one on/off valve at the inlet.

++ NOTE ON ESTIMATED AIR FLOW – Air flow listed on this page is an estimate of the air flow at a given load, and a good operating surface. Always multiply this air flow data times 1.75 to provide a safety factor or when calculating air compressor requirements.

Metric

ModelCapacity (kg)Air Flow++ (L/sec)Control ConsoleNet Weight (kg)
4K8NL181615BN3427
6K8NL272423BN6648
4K12N-HLSML362822/52BN3436
4K8NHDL362823BN3427
4K12NL453626BN3436
6K12N-HLSML544234/78BN6661
6K8NHDL544234BN6648
4K15N-HLSML634826/96BN6452
6K12NL680440BN6661
4K15NL770826BN6452
4K12NHDL907230BN3439
6K15N-HLSML952240/144BN6677
6K15NL1156240BN6677
4K21NL1270023BN6477
4K21N-HLSML1270030/112BN6477
6K12NHDL1360846BN6664
4K15NHDL1542038BN6457
6K21NL1905034BN66116
6K21N-HLSML1905046/168BN66116
6K15NHDL2313056BN6684
4K27NL2539642BN64132
4K21NHDL2902447BN6484
6K27NL3809462BN66195
4K36NL4353655BN64209
6K21NHDL4353671BN66122
4K27NHDL5079291BN84143
6K36NL6530482BN66311
6K27NHDL76188136BN86209
4K48NL8707658BN84336
4K36NHDL90704102BN84218
6K48NL13061488BN86499
6K36NHDL136056153BN86322
4K48NHDL163264113BN84372
6K48NHDL244896170BN86553

Each Load Module System includes:
Four or Six Load Modules with quick disconnect (QD) adapters
Four or Six 6 meter long (20′) color coded interconnection hoses with quick disconnect (QD) coupler (both ends)
Four or Six station regulator control console with four or six quick disconnect (QD) adapter outlets and one on/off valve at the inlet.

++ NOTE ON ESTIMATED AIR FLOW – Air flow listed on this page is an estimate of the air flow at a given load, and a good operating surface. Always multiply this air flow data times 1.75 to provide a safety factor or when calculating air compressor requirements.

ISO 9001-Certified Manufacturing and Quality Standards

AeroGo’s heavy-duty Air Caster Rigging Systems and manufacturing processes meet the highest industry standards. Our commitment to quality is demonstrated through:

These rigorous standards ensure reliable performance for demanding industrial applications across multiple sectors.

Industries That Rely on AeroGo Air Caster Rigging Systems

AeroGo air caster rigging systems serve industries worldwide, such as:

Request an Air Caster Rigging System Quote

AeroGo offers high-quality Air Caster Rigging Systems for moving heavy equipment and other industrial loads. We offer versatile and efficient solutions for diverse applications, with stocked parts for quick deployment.

Contact our team to discuss your requirements and get a quote for our systems. You can also purchase AeroGo air caster rigging systems on Grainger for readily available standard configurations.



Rigging System Specifications (PDF)

Air Caster Rigging System Options

AeroGo offers additional options for the Air Caster Rigging System, including:

  • Hose lengths: Interchangeable hose lengths for various applications.
  • GAPMASTER™ Aero-Caster: Specially developed air casters for crossing floor gaps and steps.
  • On-demand mobility: Embed an air caster rigging system directly underneath equipment, tools and components for on-demand movement.

Special Finishes

Anodized, Powder Coat, Beadblast, Roughcoat, Chemtreat, Custom Colors.

Watch the Video

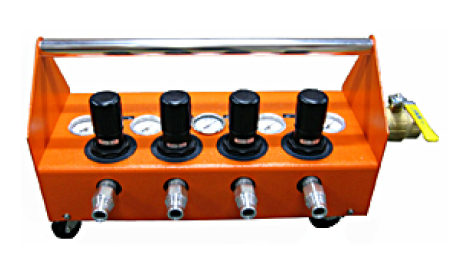

Control Console

AeroGo Control Consoles provide precise pressure control to each air caster.

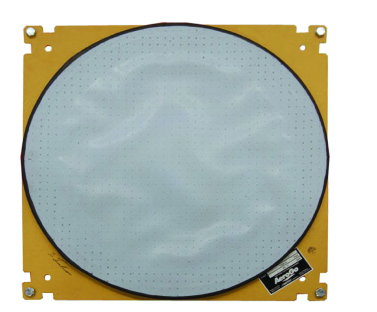

Gapmaster

Specially developed for the smooth movement of loads over gaps and steps in the floor surface.

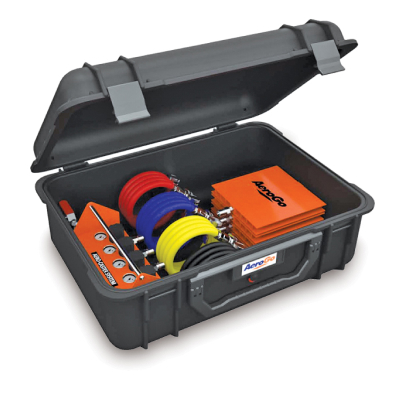

Storage Case

Hard shell storage case with built in rollers. For specific models only.

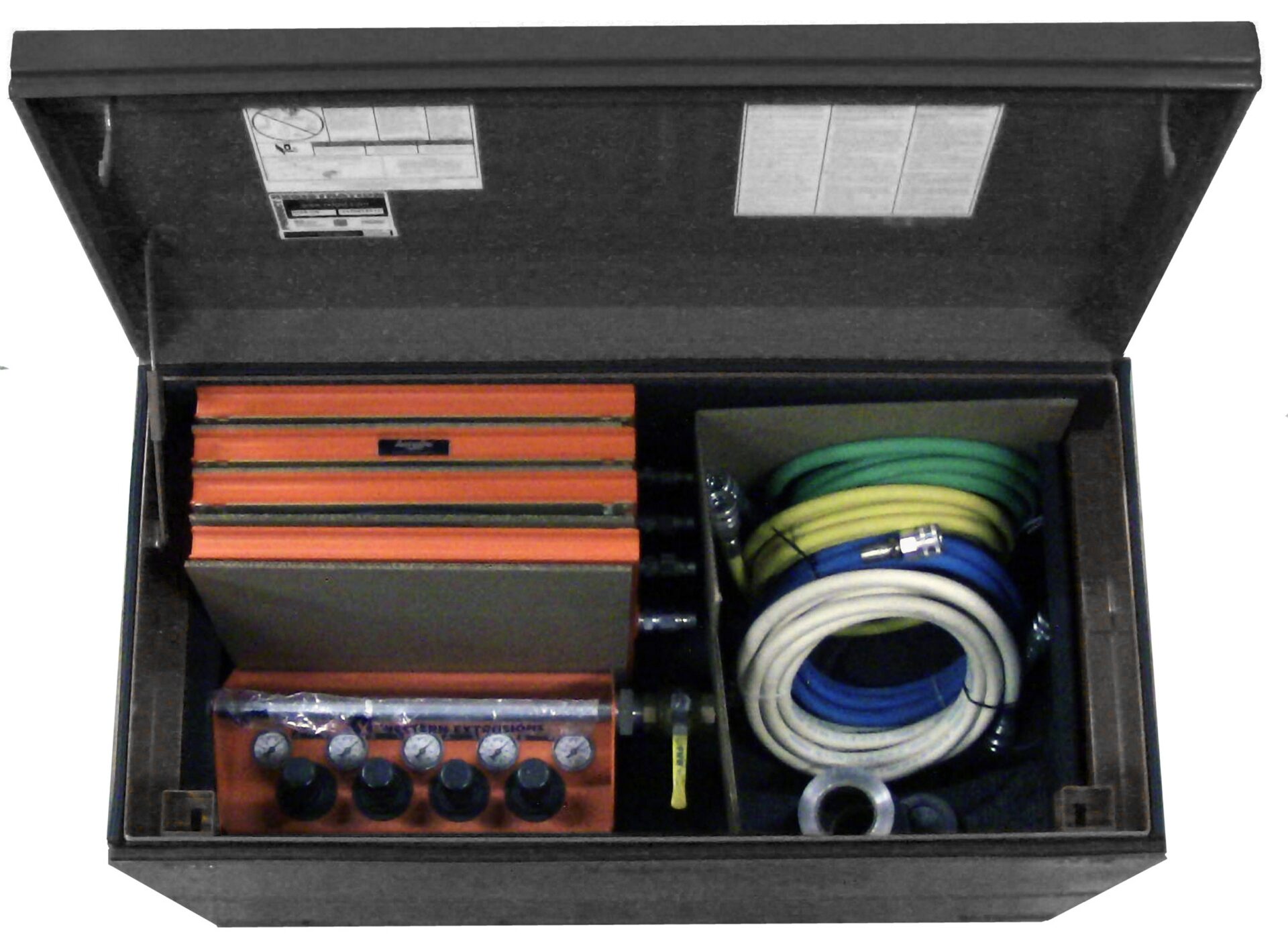

Storage Box

Lockable, industrial grade storage box. For specific models only.

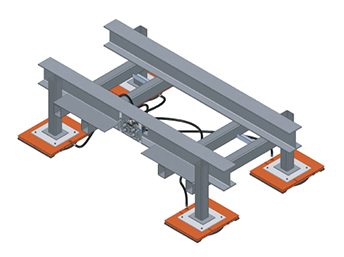

On-Demand Mobility

Did you know that air caster rigging systems can be attached to equipment, tools and components to enable on-demand movement? Download drawings and check out AeroGo embedded systems.

Embedded Air Caster Systems



    Email

    Phone



    Need Help?
    Let’s Work Together Now

    Talk to an engineer

    Request more information

    How to Select the Best Load Movement System

    A selection guide to evaluate 7 critical criteria

    Get the guide

    Air Caster Rigging Systems FAQs

    How does the Air Caster Rigging System move loads?

    The Air Caster Rigging System uses compressed air to create a thin film between the load and the floor, allowing it to float. This dramatically reduces friction, making it possible to move heavy equipment smoothly in any direction.

    How much force is needed to move a load?

    Very little force is required compared to traditional methods. Once the load is floating on air, it can typically be moved with a controlled push or pull, even at high weights. The exact force depends on the load and floor conditions,

    Can one person move a heavy load with this system?

    As a general guideline, one person can manage up to 5,000 lbs. on a good floor. Larger loads should use a team or a power drive for control and safety.

    What floor conditions are required?

    Air casters perform best on smooth, non-porous, sealed surfaces. Standard warehouse concrete is typically fine, with the ability to seal large cracks or joints in the move path. Clean, level floors help maintain a consistent air film and ensure optimal performance, but we have a wide variety of solutions for floors that are less than ideal. For rough or porous areas, we can lay down temporary overlay materials.

    What air supply do I need?

    The system runs on standard compressed air. Most industrial air systems can support it, as long as the air is clean and dry. Specific requirements will vary depending on the size and number of air casters being used. Our team can determine the air flow requirements for your system.

    Will the system lift the load as well as move it?

    Yes. The air casters lift a small amount to establish the air film, then the load floats for low‑friction travel.

    Can the Air Caster Rigging System integrate with Aero-Drives/Power Drives for motorized movement?

    Yes, Air Caster Rigging Systems can be paired with Aero-Drives. This is especially useful for heavier loads, longer distances, or applications where more control and consistency are needed.

    What is the expected service life for air caster elements and hoses?

    Service life depends on floor quality, cleanliness, load, and duty cycle. With dry air and smooth, sealed floors, Air Caster Rigging Systems can deliver long, reliable service for many years.
