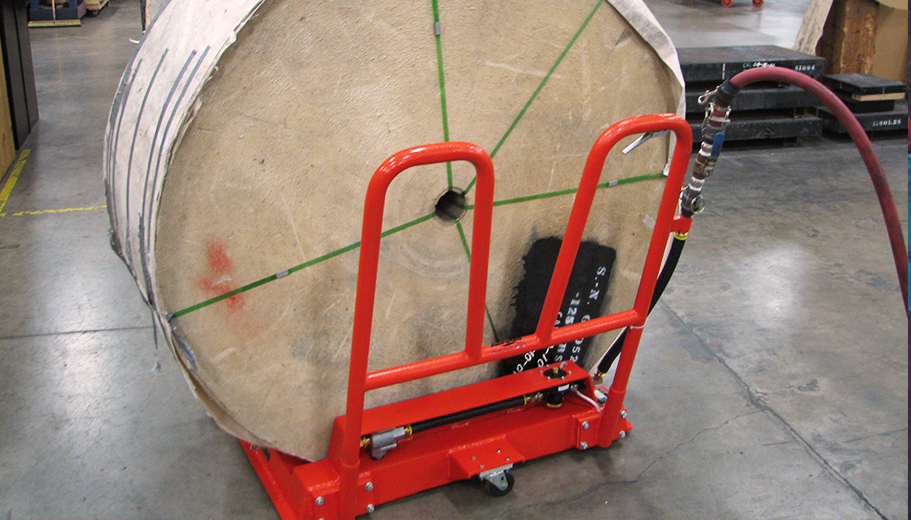

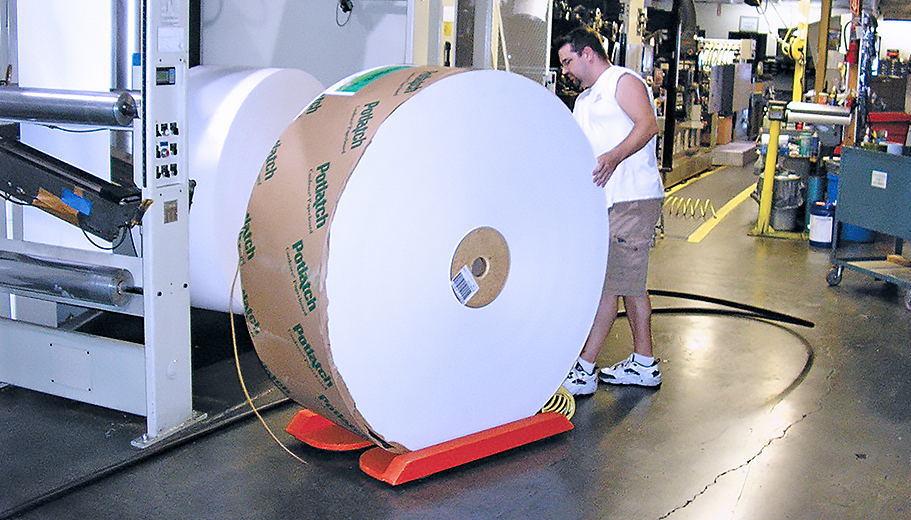

Using standard shop air, AeroGo’s Roll Handling solutions make it possible for a single person to easily float heavy paper rolls, metal sheet coils, cable reels and other similar loads on a thin film of compressed air. This unique Aero-Caster technology provides a reliable and easy-to-use alternative for your roll handling needs.
FEATURES
- Easily and safely moves rolls, reels or coils up to 12,000 lbs./5443 kg
- Accommodates a variety of roll widths and diameters
- Allows precise control to position rolls within tight spaces
- Low maintenance—no moving parts
- Clean, quiet operation

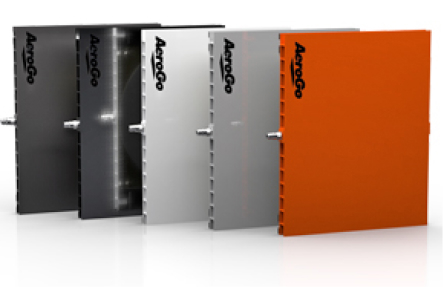

SPECIAL FINISHES
Does your application require air caster or bearing products with a specific finish? AeroGo offers anodized, powder coating, Roughcoat, Chemtreat and other special paint colors to match your production system.
SPECIFICATIONS
Standard

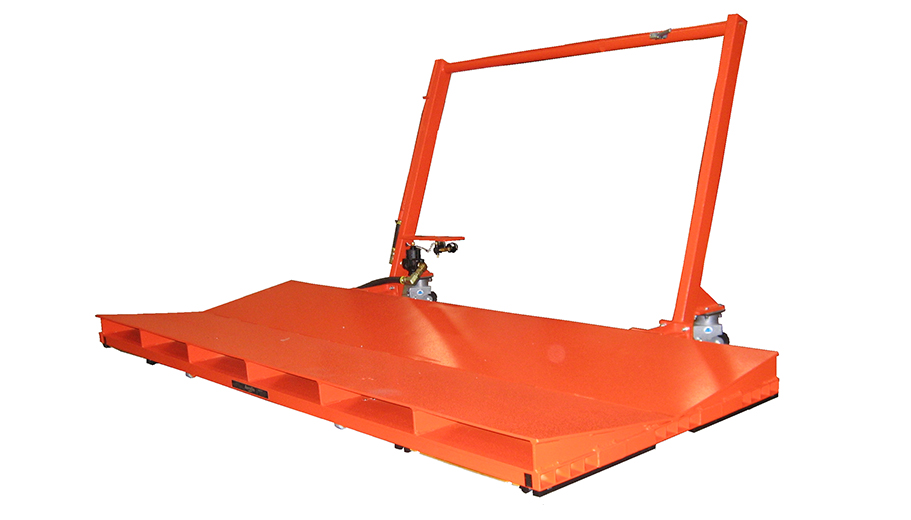

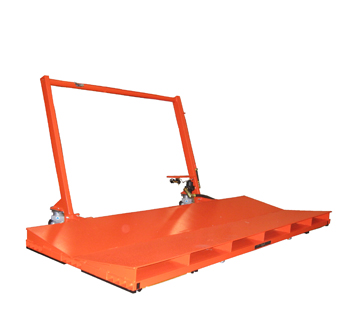

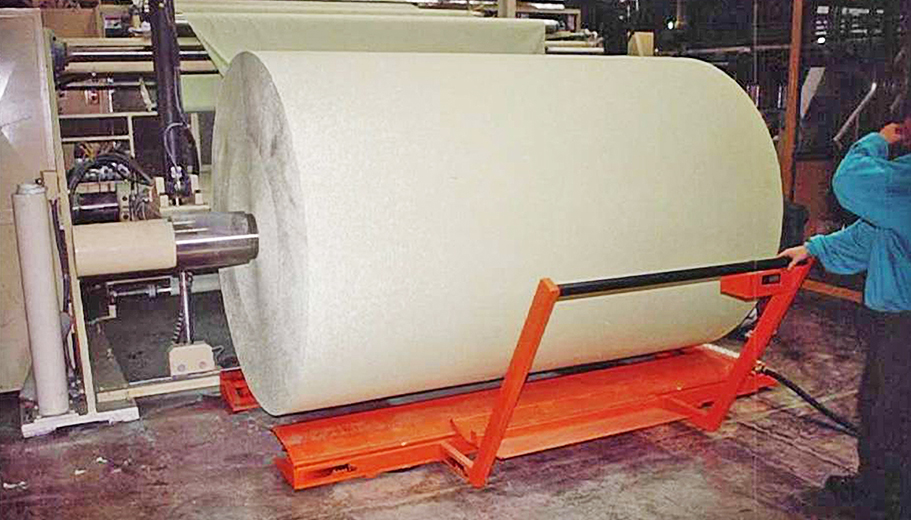

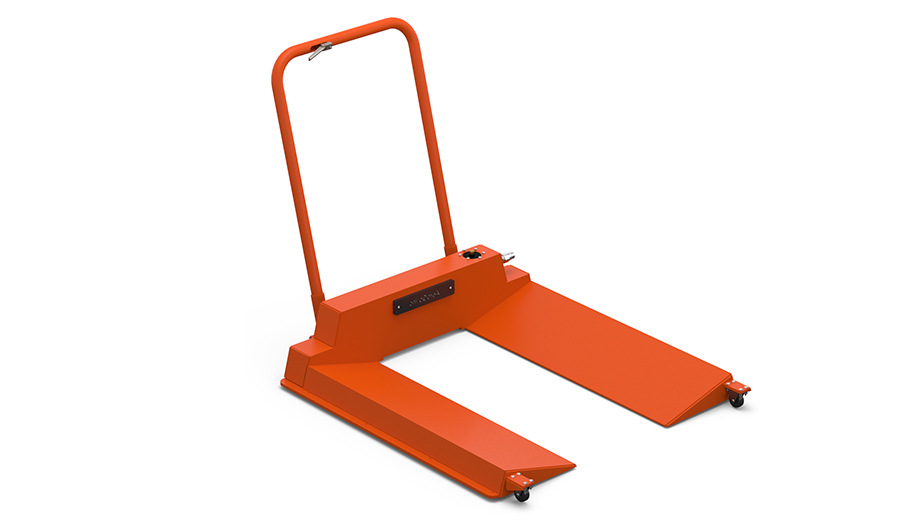

Rollmaster II
| Model Number | Capacity (lbs) | Fork length (in) | Approx. Wt (lbs) |
|---|---|---|---|
| RC4A-N24 | 8000 | 24 | 115 |
| RC4A-N30 | 8000 | 30 | 125 |
| RC4A-N36 | 8000 | 36 | 135 |
| RC4A-N42 | 8000 | 42 | 145 |
| RC4A-N48 | 8000 | 48 | 155 |
| RC4A-N54 | 8000 | 54 | 175 |
| RC4A-N60 | 8000 | 60 | 185 |
| RC6A-N30 | 12000 | 30 | 135 |
| RC6A-N36 | 12000 | 36 | 145 |
| RC6A-N42 | 12000 | 42 | 155 |
| RC6A-N48 | 12000 | 48 | 165 |
The Rollmaster II includes:
- Two front fixed no-load wheels
- One rear swivel wheel
- One inverted U-type handle (shipped unattached)
- Four or six Aero-Casters
Can be configured with neoprene or urethane Aero-Casters

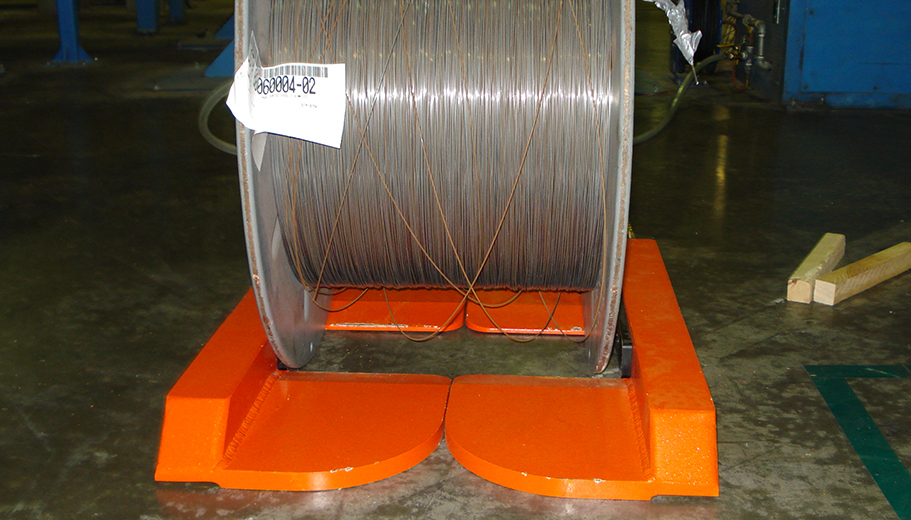

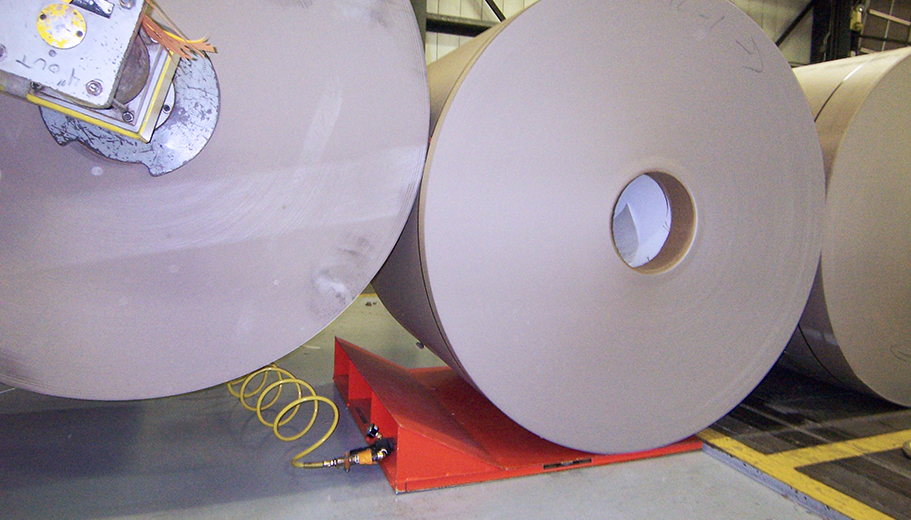

Rollmover*
| Capacity | Roll Diameter Range for < 2-in Crush | Net Wt. | ||
|---|---|---|---|---|
| Model Number | (lbs) | Min | Max | (lbs) |
| RM4T-36NRM | 8000 | 24 | 36 | 54 |
| RM4T-54NRM | 8000 | 36 | 54 | 56 |
| RM4T-60NRM | 8000 | 40 | 60 | 58 |
| RM4T-72NRM | 8000 | 54 | 72 | 58 |
| RM4T-84NRM | 8000 | 56 | 84 | 58 |
| RM4T-ANRM | 8000 | 24 | 72 | 64 |
The Rollmover includes:
- Two lift units
- One coiled interconnecting hose
- One regulator
* Rollmover with neoprene Aero-Casters. Can be configured with neoprene or urethane Aero-Casters
Metric
Rollmaster II
| Model Number | Capacity (kg) | Fork length (mm) | Approx. Wt (kg) |
|---|---|---|---|
| RC4A-N24 | 3629 | 610 | 52 |
| RC4A-N30 | 3629 | 762 | 57 |
| RC4A-N36 | 3629 | 914 | 61 |
| RC4A-N42 | 3629 | 1067 | 66 |
| RC4A-N48 | 3629 | 1219 | 70 |
| RC4A-N54 | 3629 | 1372 | 79 |
| RC4A-N60 | 3629 | 1524 | 84 |
| RC6A-N30 | 5443 | 762 | 61 |
| RC6A-N36 | 5443 | 914 | 66 |
| RC6A-N42 | 5443 | 1067 | 70 |
| RC6A-N48 | 5443 | 1219 | 75 |
The Rollmaster II includes:
- Two front fixed no-load wheels
- One rear swivel wheel
- One inverted U-type handle (shipped unattached)
- Four or six Aero-Casters
Can be configured with neoprene or urethane Aero-Casters
Rollmover*
Roll Diameter Range for < 50mm Crush Capacity Net Wt. Model Number (kg) Min Max (kg RM4T-36NRM 3629 610 915 24 RM4T-54NRM 3629 914 1370 25 RM4T-60NRM 3629 1016 1524 26 RM4T-72NRM 3629 1372 1830 26 RM4T-84NRM 3629 1422 2134 26 RM4T-ANRM 3629 610 1830 29 The Rollmover includes:
- Two lift units
- One coiled interconnecting hose
- One regulator
* Rollmover with neoprene Aero-Casters. Can be configured with neoprene or urethane Aero-Casters
