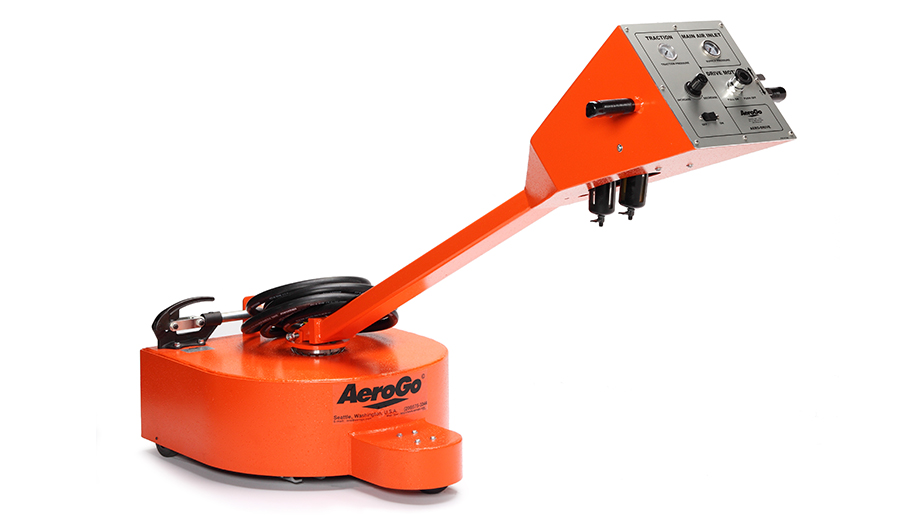

Aero-Drives provide direct wheel steering and high torque for intuitive and precise placement of heavy loads, even in tight spaces. User-friendly, centralized fingertip controls allow the operator to precisely position and place loads in any direction. Easily adjusts for varying loads.


FEATURES

  • Intuitive operator control
  • High torque, long life piston style air motors
  • Active Suspension System maintains traction over uneven surfaces and automatically accommodates changes in load height due to air caster lift and inflation

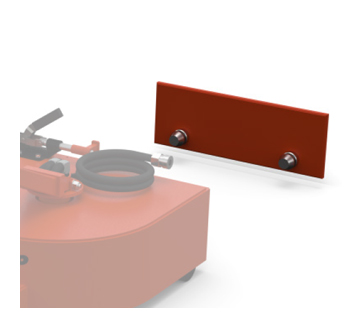

  • Quick Attach (QA) drive mounting plates make it possible to use one drive for multiple loads or attach points
  • Suitable for hazardous environments

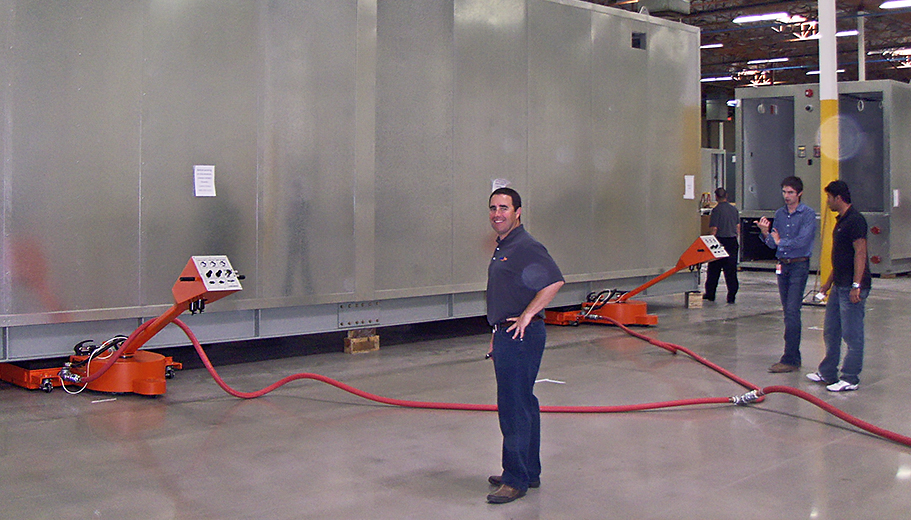

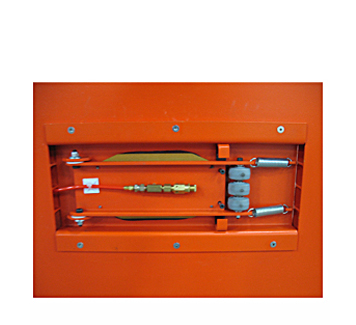

  • Can be used in combination with the optional guide wheel or in pairs to provide limitless maneuverability up to 240,000 lbs.



PRODUCT ACCESSORIES


SPECIAL FINISHES

SPECIAL FINISHES

Does your application require air caster or bearing products with a specific finish? AeroGo offers anodized, powder coating, Roughcoat, Chemtreat and other special paint colors to match your production system.

SPECIFICATIONS

Standard

ModelSpeed Range AIR CONSUMPTIONNET WEIGHT RATED LOAD CAPACITY
(ft/min)SCFM@PSI(lbs)(Tons)+
AG700E-QA0-40409036023
AG1250E-QA0-40409055041
AG2000E-QA0-40629078066
AG3500E-QA0-408390900106
AGX-011 with fixed mount0-75559030011
AGX-011 with QA plate0-75559030511

+ Rated Load Capacity: A usable figure for general industry conditions, based on good floor conditions and max 0.2% slope; a steeper slope would allow less capacity of load. Contact factory for specific recommendations.

Metric

ModelSPEED RANGE AIR CONSUMPTIONNET WEIGHT RATED LOAD CAPACITY
(m/min)L/secBar(kg)(Tonnes)+
AG700E-QA0-12196.3 kg/cm 216321
AG1250E-QA0-12196.3 kg/cm 224937
AG2000E-QA0-12296.3 kg/cm 235460
AG3500E-QA0-12396.3 kg/cm 240896
AGX-011 with fixed mount0-75559030011
AGX-011 with QA plate0-75559030511

+ Rated Load Capacity: A usable figure for general industry conditions, based on good floor conditions and max 0.2% slope; a steeper slope would allow less capacity of load. Contact factory for specific recommendations.


PDF Download
GET THE SPEC SHEET
Aero-Drive AGX-011
