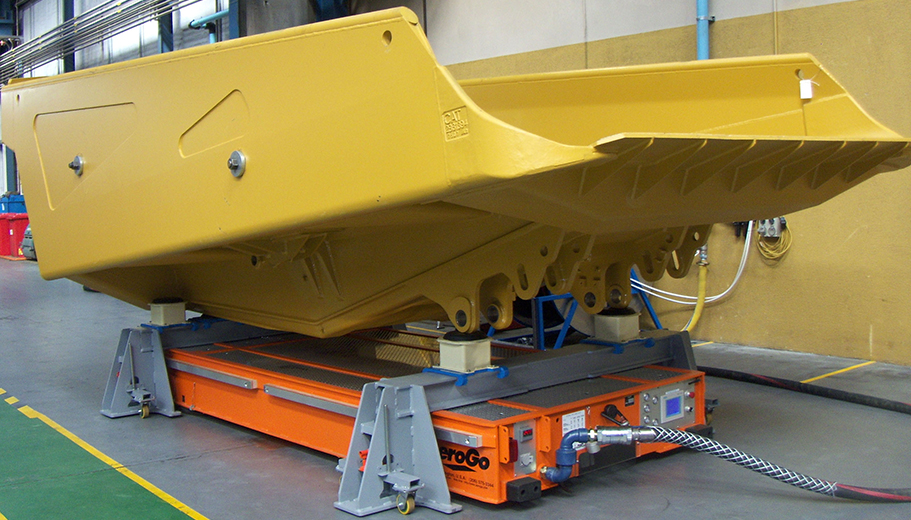

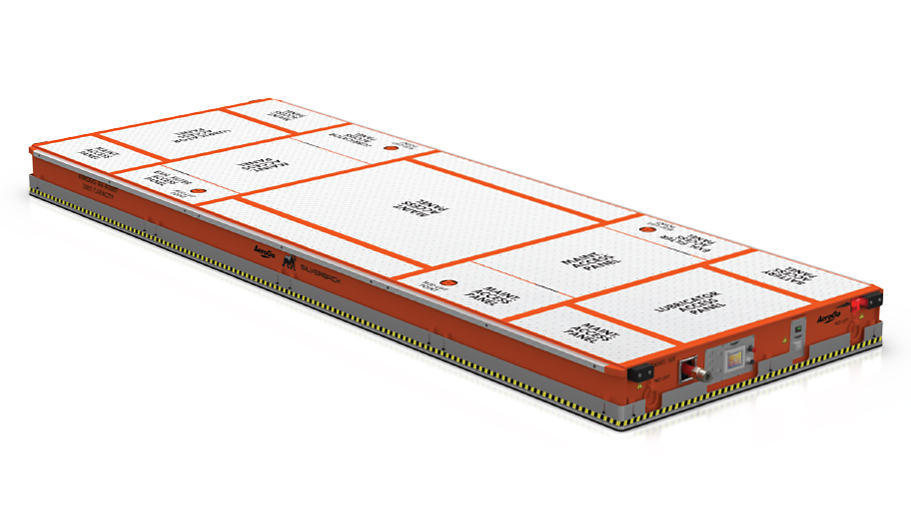

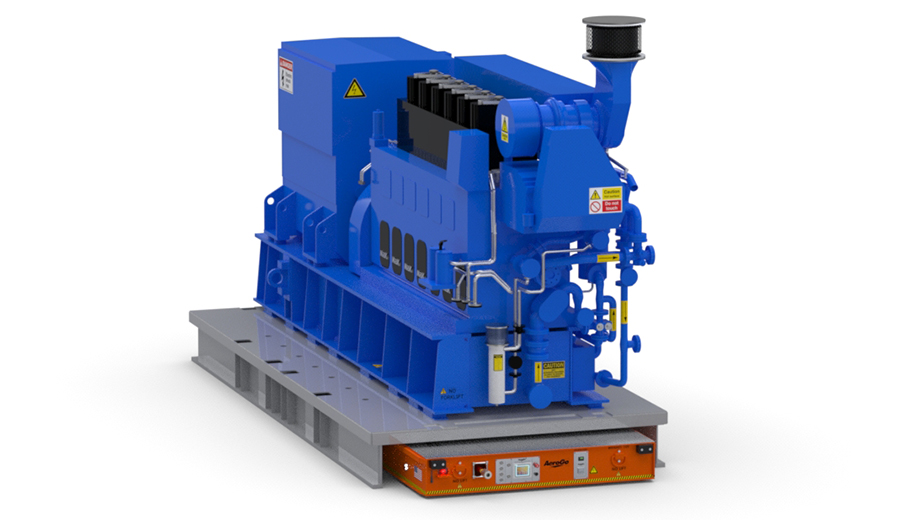

AeroGo Silverback Air Cushion Vehicles (AVs) are an ideal solution for moving heavy loads in assembly lines and components such as transformers, pressure vessels and storage casks. The Silverback series of Air Cushion Vehicles feature heavy-duty steel construction, modular componentry and a flat loading deck, ensuring your AV will withstand years of repeated production use.

FEATURES

  • Automatic Height Control System compensates for different load weights and center of gravity positions
  • Steerable Power Drives for traction and stability in all direction
  • Radio Remote Control for system power, emergency stop, drive speed, steering mode and direction
  • Support Skid allows AV to be shared with multiple loads
  • Electrically Controlled Hose Reel integrated to system; remote controlled
  • Scalable: two or more AVs can be linked together to expand total load capacity
  • Low profile operation eliminates dangerous overhead moves
  • Minimal transport height eliminates dropped load concerns
  • Advanced suspension drives ensure traction over variable surfaces



PRODUCT ACCESSORIES


Special Finishes

Special Finishes

Does your application require air caster or bearing products with a specific finish? AeroGo offers anodized, powder coating, Roughcoat, Chemtreat and other special paint colors to match your production system.
GUIDE WHEELS

GUIDE WHEELS

Need a bit more directional control of your air caster or air bearing products on uneven, slightly sloped surfaces or when tight positioning is crucial? AeroGo Guide Wheels provide added directional guidance for our air floats and bearings. Note: the addition of this option will increase your load’s profile height. Contact our engineers for an in-depth assessment of your load moving environment.

SPECIFICATIONS

Standard

Model NumberMaximum Capacity (lbs)Standard Width (ft)Standard Length (ft)Standard Height (in)
AV-A20T 4400061417
AV-A45T9900061417
AV-A100T22000081717
AV-A150T33000081717
AV-A200T44000082317
AV-A300T66000082317
AV-A350T77000082317
AV-A400T880000122117

Working temperature 4°F to 149°F; high temp option is available
Driving Speed 0 ~ 33 feet/minute

Metric

Model NumberMaximum Capacity (kg)Standard Width (m)Standard Length (m)Standard Height (mm)
AV-A20T 200001.84.3429
AV-A45T450001.84.3429
AV-A100T1000002.55.3429
AV-A150T1500002.55.3429
AV-A200T2000002.57429
AV-A300T3000002.57429
AV-A350T3500002.57429
AV-A400T4000003.86.4429

Working temperature -10°C to +65°C; high temp option is available
Driving Speed 0 ~ 10m/minute
